MODULE: Monge's Theorem.

Part 2: Tangents to circles.

We know how to construct tangent lines to circles, passing through a given point; a point either on the circle or outside of it. We still must determine how to construct the lines tangent to two circles (of different radii) at the same time.

Draw two circles, and pick any point P on one of them. Construct the line through this point that is tangent to the other circle, using what we learned in Part I. Now drag the point P around, until the line looks tangent to both circles. Can you guess where the other external tangent will be? Can you get it by using the reflection command? Now draw the radii of the two circles at their respective points of tangency. What angle do the radii and tangent line seem to form? Why is that?

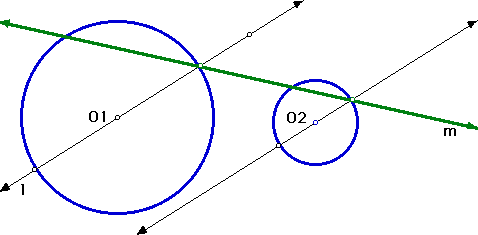

The common tangent to the two circles passes then through points that give parallel radii. Let's explore this a bit more closely. Draw two circles, and any line l through the center of one of them (i.e., any line containing a radius). Now construct a parallel line through the center of the other circle. These lines intersect each corresponding circles in two points. Pick the upper ones on each circle, and construct the line m through them. We know that for a particular choice of the first line, l, we would get the common tangent we are looking for. Move the line l without moving the circles, and use the "trace line" option on the Display menu to trace the locus of all the lines m you get. Do you notice anything peculiar? Can you check this? Do you see how can you construct it?

As we mentioned before, the common external tangent is one of the lines whose locus we traced above. So it too must pass through their common point, the so called "Center of Symmetry" of the two circles. How can you use this fact to construct the common tangent line? Can you create a script for this procedure?

Notice that when we found the center of symmetry, we picked the two upper points on each circle. What happens when we pick an upper point on one of the circles, and a lower one on the other circle? What do we get if we repeat the construction for the external tangents, but using these points now?
