| diam | [1] | -- diameter of paraboloid |
| ratio | [.30] | -- ratio of focal length to diameter |
| capped | [0] | -- whether the parabolic dish is capped or not ("1" or "0") |
| res | [24] | -- resolution of circle (see common properties) |
| attach | [0] | -- whether a truss and feedhorn should be attached ("1" or "0") |

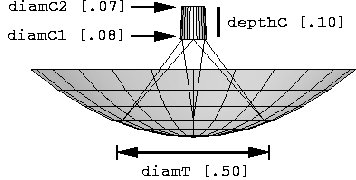

| diamT | [.50] | -- diameter at base of truss |
| diamC1 | [.08] | -- diameter at base of feedhorn |
| diamC2 | [.07] | -- diameter at top of feedhorn |
| depthC | [.10] | -- depth of feedhorn in Z direction |
| cappedC | [1] | -- whether the feedhorn is capped or not ("1" or "0") |
